Flappy Bird with AI

[toc]

1. 用class將所有遊戲物件獨立包裝

首先第一步是要修改遊戲, 將bird用class包裝起來，可以一次過在同一遊戲畫面，有後多鳥在遊玩。

例如下面的遊戲，我就修改成雙打，可以用spacebar和w鍵，分別控制兩隻鳥。

flappy_bird.pyde:

python

from Stuffs import *

panSpeed = 5
birds = []
myPipes = []

def setup():
    global birds, myPipes
    size(800, 600)
    frameRate(60)
    birds = [Bird(), Bird()]
    myPipes = [Pipe()]

def draw():
    global birds, myPipes

    if (frameCount % 100 == 0):
        myPipes.append(Pipe())
    if (myPipes[0].x < -myPipes[0].w):
        myPipes.pop(0)

    background("#70C6D5")
    for bird in birds:
        bird.update()
        bird.display()
        print(bird.collide(myPipes[0]))

    for pipe in myPipes:
        pipe.update(panSpeed)
        pipe.display()

def keyPressed():
    if (key == ' '):
        birds[0].jump()
    if (key == 'W' or key == 'w'):
        birds[1].jump()
    if (key == 'R' or key == 'r'):
        setup()

stuffs.py:

python

class Bird:
    def __init__(self):
        self.score = 0
        self.pipeCounter = 0
        self.birdPos = PVector(50, height/2)
        self.birdVec = PVector(0, 0)
        self.birdAcc = PVector(0, 0.3)
        self.isPass = False

    def update(self):
        self.birdVec.add(self.birdAcc)
        self.birdPos.add(self.birdVec)
        self.score += 1

    def jump(self):
        self.birdVec.y = -8

    def display(self):
        fill("#D5BB06")
        ellipse(self.birdPos.x, self.birdPos.y, 25, 25)

    def collide(self, _pipe):
        R = 25 / 2
        X = self.birdPos.x
        Y = self.birdPos.y
        if (X + R > _pipe.x and X - R < _pipe.x + _pipe.w):
            if (Y + R > _pipe.y or Y - R < _pipe.y - _pipe.gap):
                return True
        if (Y > height):
            return True
        return False

class Pipe:
    x = y = h = 0
    w = 80
    gap = 80

    def __init__(self):
        self.x = width + self.w
        self.y = random(100, height - 100)
        self.h = height

    def update(self, _panSpeed):
        self.x -= _panSpeed

    def display(self):
        fill(0, 204, 0)
        rect(self.x, self.y, self.w, self.h)
        rect(self.x, self.y - self.gap, self.w, -self.h)

2. 加入大腦和作簡單測試

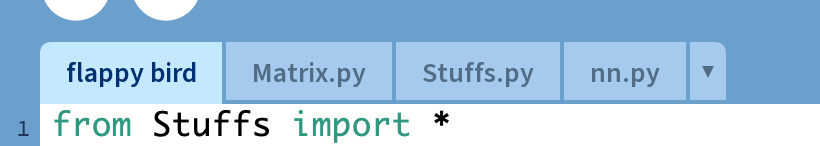

從Toy Neural Network將Matrix.py和nn.py複製到這個項目中，像下圖，你的項目中應該有4個頁面。

下面的程式，是參考The Coding Train的Neuroevolution Flappy Bird，我將其轉成了Processing for Python版本，你可以參考一下他的影片。

Stuffs.py:

python

from nn import NeuralNetwork

class Bird:
    def __init__(self):
        self.score = 0
        self.pipeCounter = 0
        self.birdPos = PVector(50, height/2)
        self.birdVec = PVector(0, 0)
        self.birdAcc = PVector(0, 0.3)
        self.isPass = False
        self.brain = NeuralNetwork(4, 4, 1)

    def think(self, pipes):
        inputs = [1.0, 0.5, 0.2, 0.3]
        output = self.brain.predict(inputs)
        if output[0] > 0.5:
            self.jump()

    def update(self):
        self.birdVec.add(self.birdAcc)
        self.birdPos.add(self.birdVec)
        self.score += 1

    def jump(self):
        self.birdVec.y = -8

    def display(self):
        fill("#D5BB06")
        ellipse(self.birdPos.x, self.birdPos.y, 25, 25)

    def collide(self, _pipe):
        R = 25 / 2
        X = self.birdPos.x
        Y = self.birdPos.y
        if (X + R > _pipe.x and X - R < _pipe.x + _pipe.w):
            if (Y + R > _pipe.y or Y - R < _pipe.y - _pipe.gap):
                return True
        if (Y > height):
            return True
        return False

class Pipe:
    x = y = h = 0
    w = 80
    gap = 80

    def __init__(self):
        self.x = width + self.w
        self.y = random(100, height - 100)
        self.h = height

    def update(self, _panSpeed):
        self.x -= _panSpeed

    def display(self):
        fill(0, 204, 0)
        rect(self.x, self.y, self.w, self.h)
        rect(self.x, self.y - self.gap, self.w, -self.h)

flappy_bird.pyde:

python

from Stuffs import *

panSpeed = 5
birds = []
myPipes = []

def setup():
    global birds, myPipes
    size(800, 600)
    frameRate(60)
    birds = [Bird(), Bird()]
    myPipes = [Pipe()]

def draw():
    global birds, myPipes

    if (frameCount % 100 == 0):
        myPipes.append(Pipe())
    if (myPipes[0].x < -myPipes[0].w):
        myPipes.pop(0)

    background("#70C6D5")
    for bird in birds:
        bird.think(myPipes)
        bird.update()
        bird.display()
        print(bird.collide(myPipes[0]))

    for pipe in myPipes:
        pipe.update(panSpeed)
        pipe.display()

def keyPressed():
    if (key == ' '):
        birds[0].jump()
    if (key == 'W' or key == 'w'):
        birds[1].jump()
    if (key == 'R' or key == 'r'):
        setup()

加入後，首先在stuffs.py中，一開始導入from nn import NeuralNetwork。

之後在birdclass中，加入self.brain = NeuralNetwork(4, 4, 1)，做一個4個輸入, 4個隱藏層和1個輸出的神經網路。

之後，在bird中加入:

python

    def think(self, pipes):
        inputs = [1.0, 0.5, 0.2, 0.3]
        output = self.brain.predict(inputs)
        if output[0] > 0.5:
            self.jump()

首先要測試一下，NeuralNetwork的class是否真的能導入到這個program中，所以先固定開4個inputs給它，再在無訓練的情況下，用predict()產生output，只要output大於0.5就jump()。

最後，在主程式的draw()中，

python

for bird in birds:
    bird.think(myPipes)
    bird.update()
    bird.display()
    print(bird.collide(myPipes[0]))

在所有birds中，加係bird.think()。運行後，兩隻鳥會隨機不停上升或不停下降。

3. 輸入有意義的`inputs`

Stuffs.py:

python

from nn import NeuralNetwork

class Bird:
    def __init__(self):
        self.score = 0
        self.pipeCounter = 0
        self.birdPos = PVector(50, height/2)
        self.birdVec = PVector(0, 0)
        self.birdAcc = PVector(0, 0.3)
        self.brain = NeuralNetwork(4, 4, 1)

    def think(self, pipes):
        inputs = []

        inputs.append(map(self.birdPos.y, 0, height, 0, 1))
        if not (self.birdIsPass(pipes[0])):
            inputs.append(map(pipes[0].y, 0, height, 0 ,1))
            inputs.append(map((pipes[0].y - pipes[0].gap), 0, height, 0, 1))
            inputs.append(map(pipes[0].x, 0, width, 0, 1))
        else:
            inputs.append(map(pipes[1].y, 0, height, 0 ,1))
            inputs.append(map((pipes[1].y - pipes[1].gap), 0, height, 0, 1))
            inputs.append(map(pipes[1].x, 0, width, 0, 1))

        print(self.birdIsPass(pipes[0]))
        for i in inputs:
            print(i)

        output = self.brain.predict(inputs)
        if output[0] > 0.5:
            self.jump()

    def update(self):
        self.birdVec.add(self.birdAcc)
        self.birdPos.add(self.birdVec)
        self.score += 1

    def jump(self):
        self.birdVec.y = -8

    def display(self):
        fill("#D5BB06")
        ellipse(self.birdPos.x, self.birdPos.y, 25, 25)

    def collide(self, _pipe):
        R = 25 / 2
        X = self.birdPos.x
        Y = self.birdPos.y
        if (X + R > _pipe.x and X - R < _pipe.x + _pipe.w):
            if (Y + R > _pipe.y or Y - R < _pipe.y - _pipe.gap):
                return True
        if (Y > height):
            return True
        return False

    def birdIsPass(self, _pipe):
        if (self.birdPos.x > _pipe.x):
            return True
        return False

class Pipe:
    x = y = h = 0
    w = 80
    gap = 80

    def __init__(self):
        self.x = width + self.w
        self.y = random(100, height - 100)
        self.h = height

    def update(self, _panSpeed):
        self.x -= _panSpeed

    def display(self):
        fill(0, 204, 0)
        rect(self.x, self.y, self.w, self.h)
        rect(self.x, self.y - self.gap, self.w, -self.h)

在這段program中，首先在Bird class中，加入birdIsPass():

python

def birdIsPass(self, _pipe):
        if (self.birdPos.x > _pipe.x):
            return True
        return False

來判斷鳥是否通過了第一條水管。

再在上面的think()中，加入有意思的參數。

python

def think(self, pipes):
        inputs = []

        inputs.append(map(self.birdPos.y, 0, height, 0, 1))
        if not (self.birdIsPass(pipes[0])):
            inputs.append(map(pipes[0].y, 0, height, 0 ,1))
            inputs.append(map((pipes[0].y - pipes[0].gap), 0, height, 0, 1))
            inputs.append(map(pipes[0].x, 0, width, 0, 1))
        else:
            inputs.append(map(pipes[1].y, 0, height, 0 ,1))
            inputs.append(map((pipes[1].y - pipes[1].gap), 0, height, 0, 1))
            inputs.append(map(pipes[1].x, 0, width, 0, 1))

        print(self.birdIsPass(pipes[0]))
        for i in inputs:
            print(i)

        output = self.brain.predict(inputs)
        if output[0] > 0.5:
            self.jump()

這裡加入了鳥本身的y座標，鳥前方水管的頂和底水管的座標，還有水管的x座標。

運行後，你可以看到，鳥是否可以通過了第一條水管，和上面幾個inputs的參數。

4. 製作一個世代

flappy_bird.pyde:

python

from Stuffs import *
from GeneticAlgorithm import *

population = 500
panSpeed = 5
birds = []
myPipes = []

def setup():
    global birds, myPipes
    size(800, 600)
    frameRate(60)
    for i in range(population):
        birds.append(Bird())
    myPipes = [Pipe()]

def draw():
    global birds, myPipes

    if (frameCount % 100 == 0):
        myPipes.append(Pipe())
    if (myPipes[0].x < -myPipes[0].w):
        myPipes.pop(0)

    background("#70C6D5")
    for bird in birds:
        bird.think(myPipes)
        bird.update()
        bird.display()
        if bird.collide(myPipes[0]):
            birds.remove(bird)
    print(len(birds))
    if (len(birds) == 0):
        nextGeneration(birds, population)

    for pipe in myPipes:
        pipe.update(panSpeed)
        pipe.display()

def keyPressed():
    if (key == ' '):
        birds[0].jump()
    if (key == 'W' or key == 'w'):
        birds[1].jump()
    if (key == 'R' or key == 'r'):
        setup()

Stuffs.py:

python

from nn import NeuralNetwork

class Bird:
    def __init__(self):
        self.score = 0
        self.pipeCounter = 0
        self.birdPos = PVector(50, height/2)
        self.birdVec = PVector(0, 0)
        self.birdAcc = PVector(0, 0.3)
        self.brain = NeuralNetwork(4, 4, 1)

    def think(self, pipes):
        inputs = []

        inputs.append(map(self.birdPos.y, 0, height, 0, 1))
        if not (self.birdIsPass(pipes[0])):
            inputs.append(map(pipes[0].y, 0, height, 0 ,1))
            inputs.append(map((pipes[0].y - pipes[0].gap), 0, height, 0, 1))
            inputs.append(map(pipes[0].x, 0, width, 0, 1))
        else:
            inputs.append(map(pipes[1].y, 0, height, 0 ,1))
            inputs.append(map((pipes[1].y - pipes[1].gap), 0, height, 0, 1))
            inputs.append(map(pipes[1].x, 0, width, 0, 1))

        output = self.brain.predict(inputs)
        if output[0] > 0.5:
            self.jump()

    def update(self):
        self.birdVec.add(self.birdAcc)
        self.birdPos.add(self.birdVec)
        self.score += 1

    def jump(self):
        self.birdVec.y = -8

    def display(self):
        fill("#D5BB06")
        ellipse(self.birdPos.x, self.birdPos.y, 25, 25)

    def collide(self, _pipe):
        R = 25 / 2
        X = self.birdPos.x
        Y = self.birdPos.y
        if (X + R > _pipe.x and X - R < _pipe.x + _pipe.w):
            if (Y + R > _pipe.y or Y - R < _pipe.y - _pipe.gap):
                return True
        if (Y > height):
            return True
        return False

    def birdIsPass(self, _pipe):
        if (self.birdPos.x > _pipe.x):
            return True
        return False

class Pipe:
    x = y = h = 0
    w = 80
    gap = 80

    def __init__(self):
        self.x = width + self.w
        self.y = random(100, height - 100)
        self.h = height

    def update(self, _panSpeed):
        self.x -= _panSpeed

    def display(self):
        fill(0, 204, 0)
        rect(self.x, self.y, self.w, self.h)
        rect(self.x, self.y - self.gap, self.w, -self.h)

GeneticAlgorithm.py:

python

from Stuffs import *

def nextGeneration(birds, _population):
    for i in range(_population):
        birds.append(Bird())

第一步，先將原本在Stuff.py中，列印inputs的值都刪去，免得一次過列印太多東西。

之後，回到主程式，

在最上方加入:

python

from GeneticAlgorithm import *

population = 500

導入新的一個叫GeneticAlgorithm的python檔案和一次過製作500隻鳥。

在setup()中，將原本的birds = [Bird(), Bird()]，轉成:

python

for i in range(population):
        birds.append(Bird())

在主程中draw()中，將所有鳥的顯示和更新等，轉成:

python

for bird in birds:
    bird.think(myPipes)
    bird.update()
    bird.display()
    if bird.collide(myPipes[0]):
        birds.remove(bird)
print(len(birds))
if (len(birds) == 0):
    nextGeneration(birds, population)

加入指令，只要撞到水管或跌出畫面，就將這隻鳥，從birds中刪除，最後再觀察現時有多少隻鳥。在一次過500隻的情況下，總會有幾隻能夠捱得到不出畫面外。

如果全部鳥都被刪除，就重生下一個世代。

開一個叫GeneticAlgorithm.py的新tag，加入:

python

from Stuffs import *

def nextGeneration(birds, _population):
    for i in range(_population):
        birds.append(Bird())

這個動作，只是重新製作新一代的人口。

5. 基因演算法(初始化、評估和選擇)

遺傳演算法的運作方式類似於生物進化的過程。它以一個稱為"基因型"的編碼來表示問題的解，並使用一組稱為"個體"的基因型來形成一個"族群"。每個個體都對應於問題的一個可能解。

遺傳演算法的運行過程通常包括以下步驟：

初始化：隨機生成一個初始個體族群。
適應度評估：對於每個個體，根據問題的目標函數計算其適應度，評估其解的品質。
選擇：根據適應度的大小，選擇一些優秀的個體作為下一代的父母。
交叉：將選擇的父母進行交叉操作，生成子代個體。
變異：對子代進行突變操作，引入一些隨機性，以增加搜索空間的探索能力。
更新族群：將子代個體與父代個體結合，形成新的族群。
重複執行步驟2至6，直到滿足停止條件（例如達到最大迭代次數或找到足夠好的解）。

flappy_bird.pyde:

python

from Stuffs import *
from GeneticAlgorithm import *

population = 500
panSpeed = 5
birds = []
allBirds = []
bestBird = None
myPipes = []
counter = 0

def setup():
    global birds, myPipes, allBirds
    size(800, 600)
    frameRate(60)
    for i in range(population):
        birds.append(Bird())

    myPipes = [Pipe()]

def draw():
    global birds, myPipes, counter, allBirds

    counter += 1
    if (counter % 100 == 0):
        myPipes.append(Pipe())
    if (myPipes[0].x < -myPipes[0].w):
        myPipes.pop(0)

    background("#70C6D5")
    for bird in birds:
        bird.think(myPipes)
        bird.update()
        bird.display()
        if bird.collide(myPipes[0]):
            allBirds.append(bird)
            birds.remove(bird)

    if (len(birds) == 0):
        birds = nextGeneration(allBirds, population)

    for pipe in myPipes:
        pipe.update(panSpeed)
        pipe.display()

def keyPressed():
    if (key == ' '):
        birds[0].jump()
    if (key == 'W' or key == 'w'):
        birds[1].jump()
    if (key == 'R' or key == 'r'):
        setup()

Stuffs.py:

python

from nn import NeuralNetwork

class Bird:
    def __init__(self):
        self.score = 0
        self.fitness = 0
        self.pipeCounter = 0
        self.birdPos = PVector(50, height/2)
        self.birdVec = PVector(0, 0)
        self.birdAcc = PVector(0, 0.3)
        self.brain = NeuralNetwork(4, 4, 1)

    def think(self, pipes):
        inputs = []

        inputs.append(map(self.birdPos.y, 0, height, 0, 1))
        if not (self.birdIsPass(pipes[0])):
            inputs.append(map(pipes[0].y, 0, height, 0 ,1))
            inputs.append(map((pipes[0].y - pipes[0].gap), 0, height, 0, 1))
            inputs.append(map(pipes[0].x, 0, width, 0, 1))
        else:
            inputs.append(map(pipes[1].y, 0, height, 0 ,1))
            inputs.append(map((pipes[1].y - pipes[1].gap), 0, height, 0, 1))
            inputs.append(map(pipes[1].x, 0, width, 0, 1))

        output = self.brain.predict(inputs)
        if output[0] > 0.5:
            self.jump()

    def update(self):
        self.birdVec.add(self.birdAcc)
        self.birdPos.add(self.birdVec)
        self.score += 1

    def jump(self):
        self.birdVec.y = -8

    def display(self):
        fill("#D5BB06")
        ellipse(self.birdPos.x, self.birdPos.y, 25, 25)

    def collide(self, _pipe):
        R = 25 / 2
        X = self.birdPos.x
        Y = self.birdPos.y
        if (X + R > _pipe.x and X - R < _pipe.x + _pipe.w):
            if (Y + R > _pipe.y or Y - R < _pipe.y - _pipe.gap):
                return True
        if (Y > height):
            return True
        return False

    def birdIsPass(self, _pipe):
        if (self.birdPos.x > _pipe.x):
            return True
        return False

    def copy(self):
        copyBird = Bird()
        copyBird.brain = self.brain.copy()
        return copyBird

class Pipe:
    x = y = h = 0
    w = 80
    gap = 180

    def __init__(self):
        self.x = width + self.w
        self.y = random(100, height - 100)
        self.h = height

    def update(self, _panSpeed):
        self.x -= _panSpeed

    def display(self):
        fill(0, 204, 0)
        rect(self.x, self.y, self.w, self.h)
        rect(self.x, self.y - self.gap, self.w, -self.h)

GeneticAlgorithm.py:

PYTHON

from Stuffs import *
import random

def nextGeneration(allBirds, population):
    global bestBird
    newBirds = []
    bestBird = findBestBird(allBirds)
    resetGame()
    normalizeFitness(allBirds)
    activeBirds = generate(allBirds)
    for i in range(population):
        newBirds.append(activeBirds[i])
    allBirds = []
    print(len(newBirds))
    return newBirds

def normalizeFitness(birds):
    # power all the score of birds
    for bird in birds:
        bird.score = pow(bird.score, 2)
    sum = 0
    for bird in birds:
        sum += bird.score
    for bird in birds:
        bird.fitness = bird.score / sum

def findBestBird(allBirds):
    maxScore = 0
    _bestBird = None
    for bird in allBirds:
        if bird.score > maxScore:
            maxScore = bird.score
            _bestBird = bird
    return _bestBird

def resetGame():
    global myPipes, counter, bestBird

    myPipes = []
    counter = 0
    if (bestBird != None):
        bestBird.score = 0

def generate(oldBirds):
    newBirds = []
    for i in range(len(oldBirds)):
        bird = poolSelection(oldBirds)
        newBirds.append(bird)
    return newBirds

def poolSelection(birds):
    index = 0
    r = random.random()
    while (r > 0):
        r -= birds[index].fitness
        index += 1
    index -= 1
    bird = birds[index]
    child = bird.copy()
    return child

以上的程式碼，做了基因演算法的前三步。我們建立了一個500隻鳥的群組，為每一隻鳥計分，紀錄鳥生存了多久，然後我們根據每隻鳥的fitness去抽選這隻鳥是否能遺傳下去有下一代。

當我們運行這個程式後，會發現過了幾代後，幾乎所有的鳥都只會有同一個行為，500隻鳥會疊在一起，這是因為這些鳥只有根據分數決定下一代，但沒有做交叉基因，所以幾代後，所有的鳥只會有同一個單一基因，所以行為完全一模一樣。

6. 基因演算法(交叉基因)

為方便展示效果，程式做了較多修改，我將全部都貼上來。共有5個檔案。

flappy_bird_AI.pyde:

python

from Stuffs import *
from GeneticAlgorithm import *
from Matrix import *

population = 500
panSpeed = 5
birds = []
allBirds = []
bestBird = None
myPipes = []
counter = 0
frame_count = 0
generation = 0

def setup():

    global birds, myPipes, allBirds, generation, counter, frame_count, bestBird
    size(800, 600)
    frameRate(60)
    for i in range(population):
        birds.append(Bird())

    myPipes = [Pipe()]
    allBirds = []
    bestBird = None
    generation = 1
    counter = 0
    frame_count = 0

def draw():

    global birds, myPipes, counter, allBirds, frame_count, generation

    counter += 1
    if (counter % 100 == 0):
        myPipes.append(Pipe())
    if (myPipes[0].x < -myPipes[0].w):
        myPipes.pop(0)

    background("#70C6D5")
    for bird in birds:
        bird.think(myPipes)
        bird.update()
        bird.display()
        if bird.collide(myPipes[0]):
            allBirds.append(bird)
            birds.remove(bird)

    if (len(birds) == 0):
        frame_count += 1
        if frame_count >= 16:
            print("new generation")
            generation += 1
            birds = nextGeneration(allBirds, population)
            allBirds = []
            frame_count = 0

    for pipe in myPipes:
        pipe.update(panSpeed)
        pipe.display()

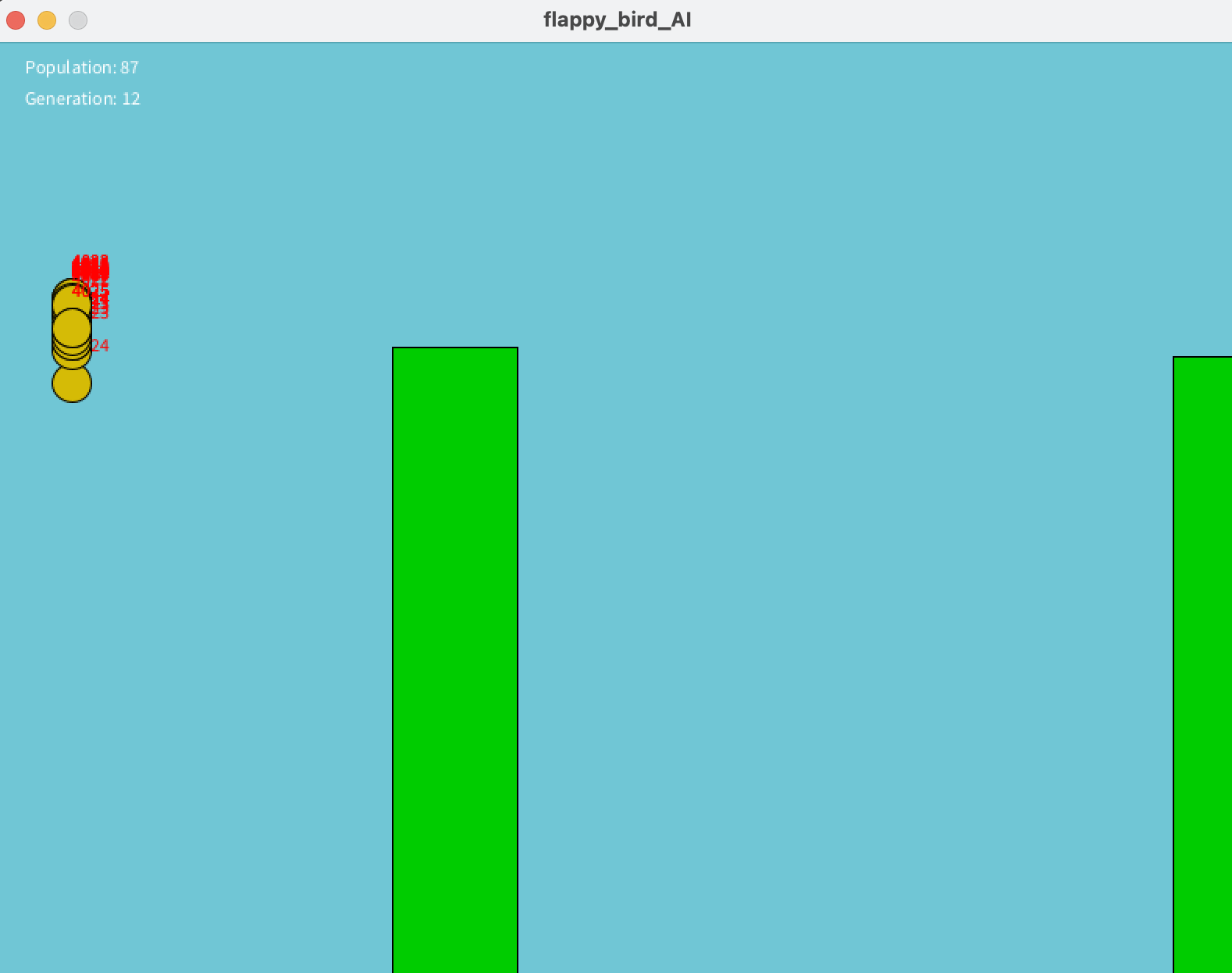

    fill(255)
    text("Population: "+str(len(birds)), 20, 20)
    text("Generation: "+str(generation), 20, 40)

# def keyPressed():
#     if (key == ' '):
#         birds[0].jump()
#     if (key == 'W' or key == 'w'):
#         birds[1].jump()
#     if (key == 'R' or key == 'r'):
#         setup()

GeneticAlgorithm.py:

python

from Stuffs import *
import random

def nextGeneration(allBirds, population):
    global bestBird
    newBirds = []
    bestBird = findBestBird(allBirds)
    resetGame()
    normalizeFitness(allBirds)
    activeBirds = generate(allBirds)
    for i in range(population):
        newBirds.append(activeBirds[i])

    return newBirds

def normalizeFitness(birds):
    # power all the score of birds
    for bird in birds:
        bird.score = pow(bird.score, 2)
    sum = 0
    for bird in birds:
        sum += bird.score
    for bird in birds:
        bird.fitness = bird.score / sum

def findBestBird(allBirds):
    maxScore = 0
    _bestBird = None
    for bird in allBirds:
        if bird.score > maxScore:
            maxScore = bird.score
            _bestBird = bird
    return _bestBird

def resetGame():
    global myPipes, counter, bestBird

    myPipes = []
    counter = 0

    if (bestBird != None):
        bestBird.score = 0

def crossover(bird1, bird2):
    child = Bird()
    child.brain = NeuralNetwork(4,4,1)

    child.brain.weights_ih = bird1.brain.weights_ih.crossover(bird2.brain.weights_ih)
    child.brain.weights_ho = bird1.brain.weights_ho.crossover(bird2.brain.weights_ho)
    child.brain.bias_h = bird1.brain.bias_h.crossover(bird2.brain.bias_h)
    child.brain.bias_o = bird1.brain.bias_o.crossover(bird2.brain.bias_o)

    return child

def generate(oldBirds):
    newBirds = []
    for i in range(len(oldBirds)):
        bird1 = poolSelection(oldBirds)
        bird2 = poolSelection(oldBirds)
        child = crossover(bird1, bird2)
        newBirds.append(child)
    return newBirds

def poolSelection(birds):
    index = 0
    r = random.random()
    while (r > 0):
        r -= birds[index].fitness
        index += 1
    index -= 1
    bird = birds[index]
    child = bird.copy()
    return child

Matrix.py:

python

import random

class Matrix():

    def __init__(self, rows, columns):
        self.rows = rows
        self.columns = columns
        self.data = [[0 for x in range(columns)] for y in range(rows)]

    def _print(self):
        for row in self.data:
            print(row)
        print('\n')

    def copy(self):
        m = Matrix(self.rows, self.columns)
        for i in range(self.rows):
            for j in range(self.columns):
                m.data[i][j] = self.data[i][j]
        return m

    @classmethod
    def fromArray(cls, array):
        m = Matrix(len(array), 1)
        for i in range(len(array)):
            m.data[i][0] = array[i]
        return m

    def toArray(self):
        array = []
        for i in range(self.rows):
            for j in range(self.columns):
                array.append(self.data[i][j])
        return array

    def add(self, n, b=None):
            if b is None:
                if isinstance(n, Matrix):
                    if self.rows != n.rows or self.columns != n.columns :
                        print("Columns and Rows of A must match Columns and Rows of B.")
                        return
                    result = Matrix(self.rows, self.columns)
                    for i in range(self.rows):
                        for j in range(self.columns):
                            result.data[i][j] = self.data[i][j] + n.data[i][j]
                else:
                    result = Matrix(self.rows, self.columns)
                    for i in range(self.rows):
                        for j in range(self.columns):
                            result.data[i][j] = self.data[i][j] + n
            else:
                if isinstance(n, Matrix) and isinstance(b, Matrix):
                    if n.rows != b.rows or n.columns != b.columns:
                        print("Columns and Rows of A, B and C must match.")
                        return
                    result = Matrix(n.rows, n.columns)
                    for i in range(n.rows):
                        for j in range(n.columns):
                            result.data[i][j] = n.data[i][j] + b.data[i][j]
                elif isinstance(n, Matrix) and not isinstance(b, Matrix):
                    result = Matrix(n.rows, n.columns)
                    for i in range(n.rows):
                        for j in range(n.columns):
                            result.data[i][j] = n.data[i][j] + b
            return result

    def subtract(self, n, b = None):
        if b is None:
            if isinstance(n, Matrix):
                return self.add(n.multiply(-1))
            else:
                return self.add(-n)
        else:
            if isinstance(n, Matrix) and isinstance(b, Matrix):
                return n.add(b.multiply(-1))
            elif isinstance(n, Matrix) and not isinstance(b, Matrix):
                return n.add(-b)


    def randomize(self):
        for i in range(self.rows):
            for j in range(self.columns):
                self.data[i][j] = random.uniform(-1, 1)

    def transpose(self):
        result = Matrix(self.columns, self.rows)
        for i in range(self.rows):
            for j in range(self.columns):
                result.data[j][i] = self.data[i][j]
        return result

    def multiply(self, n, b = None):
        if b is None:
            # check if n is a matrix or a scalar
            if isinstance(n, Matrix):
                if self.columns != n.rows:
                    print("Columns of A must match rows of B.")
                    return
                result = Matrix(self.rows, n.columns)
                for i in range(result.rows):
                    for j in range(result.columns):
                        sum = 0
                        for k in range(self.columns):
                            sum += self.data[i][k] * n.data[k][j]
                        result.data[i][j] = sum
                return result
            else:
                result = Matrix(self.rows, self.columns)
                for i in range(self.rows):
                    for j in range(self.columns):
                        result.data[i][j] = self.data[i][j] * n
                return result
        else:
            if isinstance(n, Matrix) and isinstance(b, Matrix):
                if n.columns != b.rows:
                    print("Columns of A must match rows of B.")
                    return
                result = Matrix(n.rows, b.columns)
                for i in range(result.rows):
                    for j in range(result.columns):
                        sum = 0
                        for k in range(n.columns):
                            sum += n.data[i][k] * b.data[k][j]
                        result.data[i][j] = sum
                return result
            elif isinstance(n, Matrix) and not isinstance(b, Matrix):
                result = Matrix(n.rows, n.columns)
                for i in range(n.rows):
                    for j in range(n.columns):
                        result.data[i][j] = n.data[i][j] * b
                return result

    def hadamard_product(self, n, b = None):
        if b is None:
            if self.rows != n.rows or self.columns != n.columns:
                print("Columns and Rows of A must match Columns and Rows of B.")
                return
            result = Matrix(self.rows, self.columns)
            for i in range(result.rows):
                for j in range(result.columns):
                    result.data[i][j] = self.data[i][j] * n.data[i][j]
            return result
        else:
            if n.rows != b.rows or n.columns != b.columns:
                print("Columns and Rows of A, B and C must match.")
                return
            result = Matrix(n.rows, n.columns)
            for i in range(result.rows):
                for j in range(result.columns):
                    result.data[i][j] = n.data[i][j] * b.data[i][j]
            return result

    def map(self, func):
        for i in range(self.rows):
            for j in range(self.columns):
                val = self.data[i][j]
                self.data[i][j] = func(val)
        return self

    def crossover(self, other):
        crossoverPoint = random.randint(0, self.rows * self.columns)
        childData = []
        for i in range(self.rows):
            childRow = []
            for j in range(self.columns):
                if i * self.columns + j < crossoverPoint:
                    childRow.append(self.data[i][j])
                else:
                    childRow.append(other.data[i][j])
            childData.append(childRow)
        child = Matrix(self.rows, self.columns)
        child.data = childData
        return child

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173

Stuffs.py:

python

from nn import NeuralNetwork

class Bird:
    def __init__(self):
        self.score = 0
        self.fitness = 0
        self.pipeCounter = 0
        self.birdPos = PVector(50, height/2)
        self.birdVec = PVector(0, 0)
        self.birdAcc = PVector(0, 0.3)
        self.brain = NeuralNetwork(4, 4, 1)

    def think(self, pipes):
        inputs = []

        inputs.append(map(self.birdPos.y, 0, height, 0, 1))
        if not (self.birdIsPass(pipes[0])):
            inputs.append(map(pipes[0].y, 0, height, 0 ,1))
            inputs.append(map((pipes[0].y - pipes[0].gap), 0, height, 0, 1))
            inputs.append(map(pipes[0].x, 0, width, 0, 1))
        else:
            inputs.append(map(pipes[1].y, 0, height, 0 ,1))
            inputs.append(map((pipes[1].y - pipes[1].gap), 0, height, 0, 1))
            inputs.append(map(pipes[1].x, 0, width, 0, 1))

        output = self.brain.predict(inputs)
        if output[0] > 0.5:
            self.jump()

    def update(self):
        self.birdVec.add(self.birdAcc)
        self.birdPos.add(self.birdVec)
        self.score += 1

    def jump(self):
        self.birdVec.y = -8

    def display(self):
        fill("#D5BB06")
        ellipse(self.birdPos.x, self.birdPos.y, 25, 25)
        fill("#FF0000")
        text(self.score, self.birdPos.x, self.birdPos.y - 20)

    def collide(self, _pipe):
        R = 25 / 2
        X = self.birdPos.x
        Y = self.birdPos.y
        if (X + R > _pipe.x and X - R < _pipe.x + _pipe.w):
            if (Y + R > _pipe.y or Y - R < _pipe.y - _pipe.gap):
                return True
        if (Y > height):
            return True
        return False

    def birdIsPass(self, _pipe):
        if (self.birdPos.x > _pipe.x):
            return True
        return False

    def copy(self):
        copyBird = Bird()
        copyBird.brain = self.brain.copy()
        return copyBird

class Pipe:
    x = y = h = 0
    w = 80
    gap = 280

    def __init__(self):
        self.x = width + self.w
        self.y = random(100, height - 100)
        self.h = height

    def update(self, _panSpeed):
        self.x -= _panSpeed

    def display(self):
        fill(0, 204, 0)
        rect(self.x, self.y, self.w, self.h)
        rect(self.x, self.y - self.gap, self.w, -self.h)

nn.py:

python

from Matrix import *
import math

class ActivationFunction:
    def __init__(self, func, dfunc):
        self.func = func
        self.dfunc = dfunc

def sigmoid_func(x):
    return 1 / (1 + math.exp(-x))

def sigmoid_dfunc(y):
    return y * (1 - y)

sigmoid = ActivationFunction(sigmoid_func, sigmoid_dfunc)

def tanh_func(x):
    return math.tanh(x)

def tanh_dfunc(y):
    return 1 - (y * y)

tanh = ActivationFunction(tanh_func, tanh_dfunc)

class NeuralNetwork:
    def __init__(self, a, b=None, c=None):
        if isinstance(a, NeuralNetwork):
            self.input_nodes = a.input_nodes
            self.hidden_nodes = a.hidden_nodes
            self.output_nodes = a.output_nodes

            self.weights_ih = a.weights_ih.copy()
            self.weights_ho = a.weights_ho.copy()

            self.bias_h = a.bias_h.copy()
            self.bias_o = a.bias_o.copy()
        else:
            self.input_nodes = a
            self.hidden_nodes = b
            self.output_nodes = c

            self.weights_ih = Matrix(self.hidden_nodes, self.input_nodes)
            self.weights_ho = Matrix(self.output_nodes, self.hidden_nodes)
            self.weights_ih.randomize()
            self.weights_ho.randomize()

            self.bias_h = Matrix(self.hidden_nodes, 1)
            self.bias_o = Matrix(self.output_nodes, 1)
            self.bias_h.randomize()
            self.bias_o.randomize()

        self.setLearningRate(0.1)
        self.setActivationFunction(sigmoid)

    def predict(self, input_array):
        # Generating the Hidden Outputs
        inputs = Matrix.fromArray(input_array)
        hidden = Matrix.multiply(self.weights_ih, inputs)
        hidden = hidden.add(self.bias_h)
        # activation function!
        hidden.map(self.activation_function.func)

        # Generating the output's output!
        output = Matrix.multiply(self.weights_ho, hidden)
        output = output.add(self.bias_o)
        output.map(self.activation_function.func)

        # Sending back to the caller!
        return output.toArray()

    def setLearningRate(self, learning_rate):
        self.learning_rate = learning_rate

    def setActivationFunction(self, func):
        self.activation_function = func

    def train(self, input_array, target_array):
        # Generating the Hidden Outputs
        inputs = Matrix.fromArray(input_array)
        hidden = Matrix.multiply(self.weights_ih, inputs)
        hidden = hidden.add(self.bias_h)
        # activation function!
        hidden.map(self.activation_function.func)
        # Generating the output's output!
        outputs = Matrix.multiply(self.weights_ho, hidden)
        outputs = outputs.add(self.bias_o)
        outputs.map(self.activation_function.func)

        # Convert array to matrix object
        targets = Matrix.fromArray(target_array)

        # Calculate the error
        # ERROR = TARGETS - OUTPUTS
        output_errors = Matrix.subtract(targets, outputs)

        # let gradient = outputs * (1 - outputs);
        # Calculate gradient
        gradients = Matrix.map(outputs, self.activation_function.dfunc)
        gradients = gradients.hadamard_product(output_errors)
        gradients = gradients.multiply(self.learning_rate)

        # Calculate deltas
        hidden_T = Matrix.transpose(hidden)
        weight_ho_deltas = Matrix.multiply(gradients, hidden_T)
        # Adjust the weights by deltas
        self.weights_ho = self.weights_ho.add(weight_ho_deltas)
        # Adjust the bias by its deltas (which is just the gradients)
        self.bias_o = self.bias_o.add(gradients)

        # Calculate the hidden layer errors
        who_t = Matrix.transpose(self.weights_ho)
        hidden_errors = Matrix.multiply(who_t, output_errors)

        # Calculate hidden gradient
        hidden_gradient = Matrix.map(hidden, self.activation_function.dfunc)
        hidden_gradient = hidden_gradient.hadamard_product(hidden_errors)
        hidden_gradient = hidden_gradient.multiply(self.learning_rate)

        # Calcuate input->hidden deltas
        inputs_T = Matrix.transpose(inputs)
        weight_ih_deltas = Matrix.multiply(hidden_gradient, inputs_T)

        self.weights_ih = self.weights_ih.add(weight_ih_deltas)
        # Adjust the bias by its deltas (which is just the gradients)
        self.bias_h = self.bias_h.add(hidden_gradient)

    def copy(self):
        return NeuralNetwork(self)

    def mutate(self, func):
        self.weights_ih.map(func)
        self.weights_ho.map(func)
        self.bias_o.map(func)
        self.bias_h.map(func)

為方便和調試，我將遊戲的難度降底了，可以看到，去到第12代後，在沒有設定timeout的情況下，最終有20隻鳥有40000分以上。

這裡，我主要在Matrixclass中加入了crossover功能，讓矩陣能夠交換內容，之後也在GeneticAlgorithm.py中，將鳥交換基因，令到每一代都能跟隨上一代的父母交換基因特徵。

但是否每一次都能成功呢？當然不是，就算生物在進化時，有些物種不能適應環境，就算勉強繁演下去，也會全族滅亡，舉個例子，如果這500隻鳥也沒有跳過水管的能力，那麼它們的基因傳下去，也沒有這個能力的。就像近親繁殖一樣，如果找不到新的基因，太相似的基因一路繁演下去，就會變得很單一，一個可能是對這個水管十分熟識，整個族群都能拿到高分，一個可能是對環境十分不熟識，全部群眾都很低分。但就算是前者, 也會因為對環境十分熟悉，這時如果將水管的開口變窄，就會完全不適應而全族滅亡。為了應該這個問題，便需要在遺傳中，加入「基因變異(mutation)」。

7. 基因演算法(變異)

GeneticAlgorithm.py:

python

from Stuffs import *
import random

def nextGeneration(allBirds, population):
    global bestBird
    newBirds = []
    bestBird = findBestBird(allBirds)
    resetGame()
    normalizeFitness(allBirds)
    activeBirds = generate(allBirds)
    for i in range(population):
        newBirds.append(activeBirds[i])

    return newBirds

def normalizeFitness(birds):
    # power all the score of birds
    for bird in birds:
        bird.score = pow(bird.score, 2)
    sum = 0
    for bird in birds:
        sum += bird.score
    for bird in birds:
        bird.fitness = bird.score / sum

def findBestBird(allBirds):
    maxScore = 0
    _bestBird = None
    for bird in allBirds:
        if bird.score > maxScore:
            maxScore = bird.score
            _bestBird = bird
    return _bestBird

def resetGame():
    global myPipes, counter, bestBird

    myPipes = []
    counter = 0

    if (bestBird != None):
        bestBird.score = 0

def crossover(bird1, bird2):
    child = Bird()
    child.brain = NeuralNetwork(4,4,1)

    child.brain.weights_ih = bird1.brain.weights_ih.crossover(bird2.brain.weights_ih)
    child.brain.weights_ho = bird1.brain.weights_ho.crossover(bird2.brain.weights_ho)
    child.brain.bias_h = bird1.brain.bias_h.crossover(bird2.brain.bias_h)
    child.brain.bias_o = bird1.brain.bias_o.crossover(bird2.brain.bias_o)

    return child

def mutation_func(x):
    mutation_rate = 0.002
    if random.random() < mutation_rate:
        return x + random.gauss(0, 0.05)
    else:
        return x

def generate(oldBirds):
    newBirds = []
    for i in range(len(oldBirds)):
        bird1 = poolSelection(oldBirds)
        bird2 = poolSelection(oldBirds)
        child = crossover(bird1, bird2)
        child.brain.mutate(mutation_func)
        newBirds.append(child)
    return newBirds

def poolSelection(birds):
    index = 0
    r = random.random()
    while (r > 0):
        r -= birds[index].fitness
        index += 1
    index -= 1
    bird = birds[index]
    child = bird.copy()
    return child

今次只有一個細節位有改變。

在這裡，我們加入了一個mutation_func，用來令神經網路改變。之後在原本的generate中，在基因交換後，加入child.brain.mutate(mutation_func)令基因變異。

python

def mutation_func(x):
    mutation_rate = 0.002
    if random.random() < mutation_rate:
        return x + random.gauss(0, 0.05)
    else:
        return x

def generate(oldBirds):
    newBirds = []
    for i in range(len(oldBirds)):
        bird1 = poolSelection(oldBirds)
        bird2 = poolSelection(oldBirds)
        child = crossover(bird1, bird2)
        child.brain.mutate(mutation_func)
        newBirds.append(child)
    return newBirds

這裡有2個數值得們我們關注:

mutation_rate = 0.002: 是變異率，0.002大約是500隻當中，有一隻會有變異，這個其實已經相當高，人類的變異率，是的級數，而細菌和病毒則較高，是的級數。太高的變異率，會令好的基因很難維持下去。
x + random.gauss(0, 0.05): 另一個是我們的變異函數，在發生變異時，有多大程度影響這個基因，如果太大的話，會令整個基因產生翻天覆地的變化，由貓變異做狗，但如果太少的話，對效果又不明顯。

8. 考考你

來到這裡，這個程式已經完成，但也有不少改良空間。

鳥的大腦，中間隱藏層只有4個神經源，在The Coding Train的例子中，神經網路不是我們的NeuralNetwork(4, 4, 1)，即4個輸入變量，4層隱藏層和1個輸出，而是NeuralNetwork(5, 8, 2)，他的例子有2個輸出，如果輸出1少於輸出2，則鳥就會跳，令神經網路的複雜度增加，你試試先將神經網路轉成NeuralNetwork(4, 16, 1)，看看鳥有沒有更聰明。之後再試著變成NeuralNetwork(4, 8, 2)。
在原例子中，神經網路是NeuralNetwork(5, 8, 2)，因為輸入的考慮因素，還有一個是birdVec，試著將birdVec.y加入變為考慮: inputs.append( map(this.birdVec.y, -5, 5, 0, 1))
鳥的生命沒有限制，令成功生存的鳥一直生存下去，沒有機會變下一世代，不利基因遺傳，試設定一個liftcount，鳥在經過2000個frameCount後就會滅亡，還入下一個世代。

Flappy Bird with AI ​

1. 用class將所有遊戲物件獨立包裝 ​

2. 加入大腦和作簡單測試 ​

3. 輸入有意義的inputs ​

4. 製作一個世代 ​

5. 基因演算法(初始化、評估和選擇) ​

6. 基因演算法(交叉基因) ​

7. 基因演算法(變異) ​

8. 考考你 ​

Flappy Bird with AI

1. 用class將所有遊戲物件獨立包裝

2. 加入大腦和作簡單測試

3. 輸入有意義的`inputs`

4. 製作一個世代

5. 基因演算法(初始化、評估和選擇)

6. 基因演算法(交叉基因)

7. 基因演算法(變異)

8. 考考你
